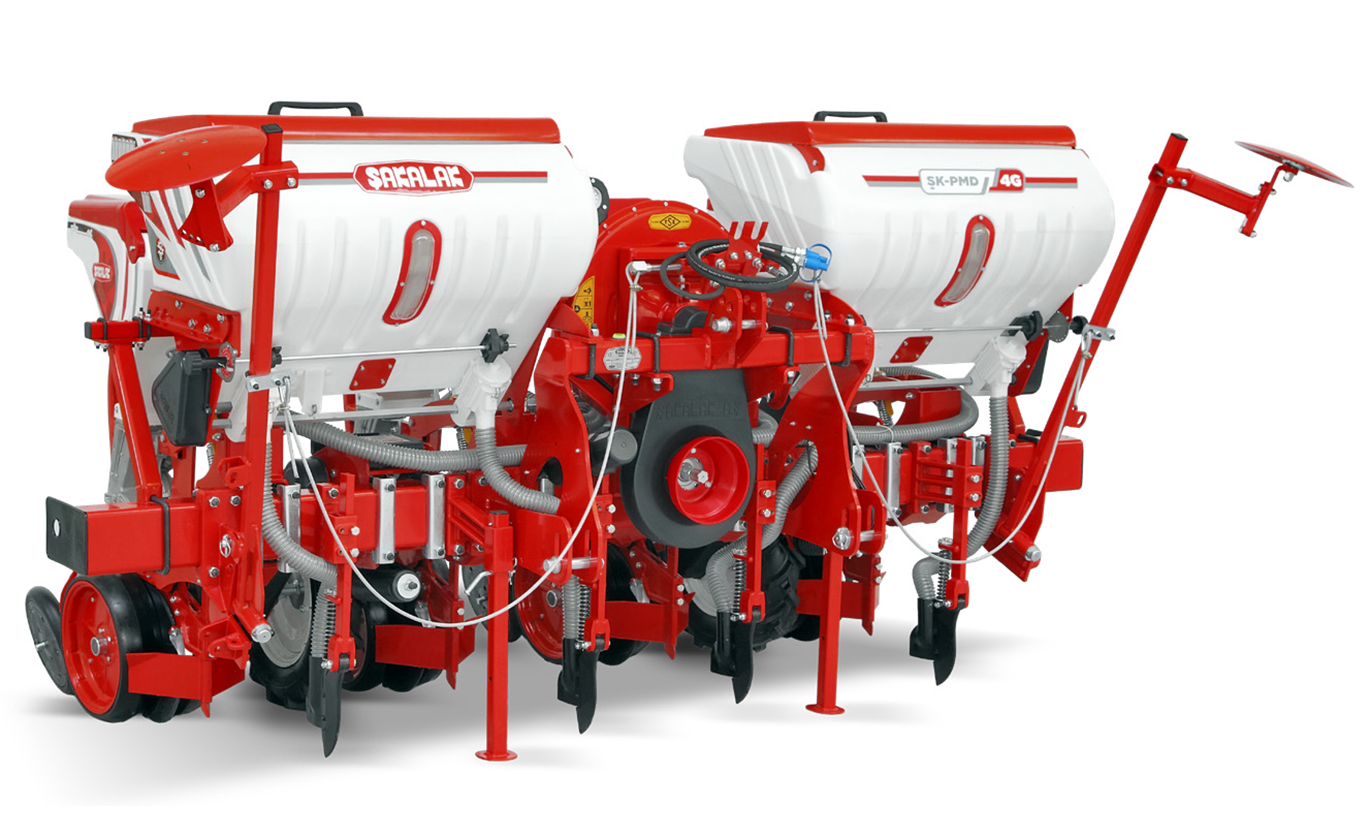

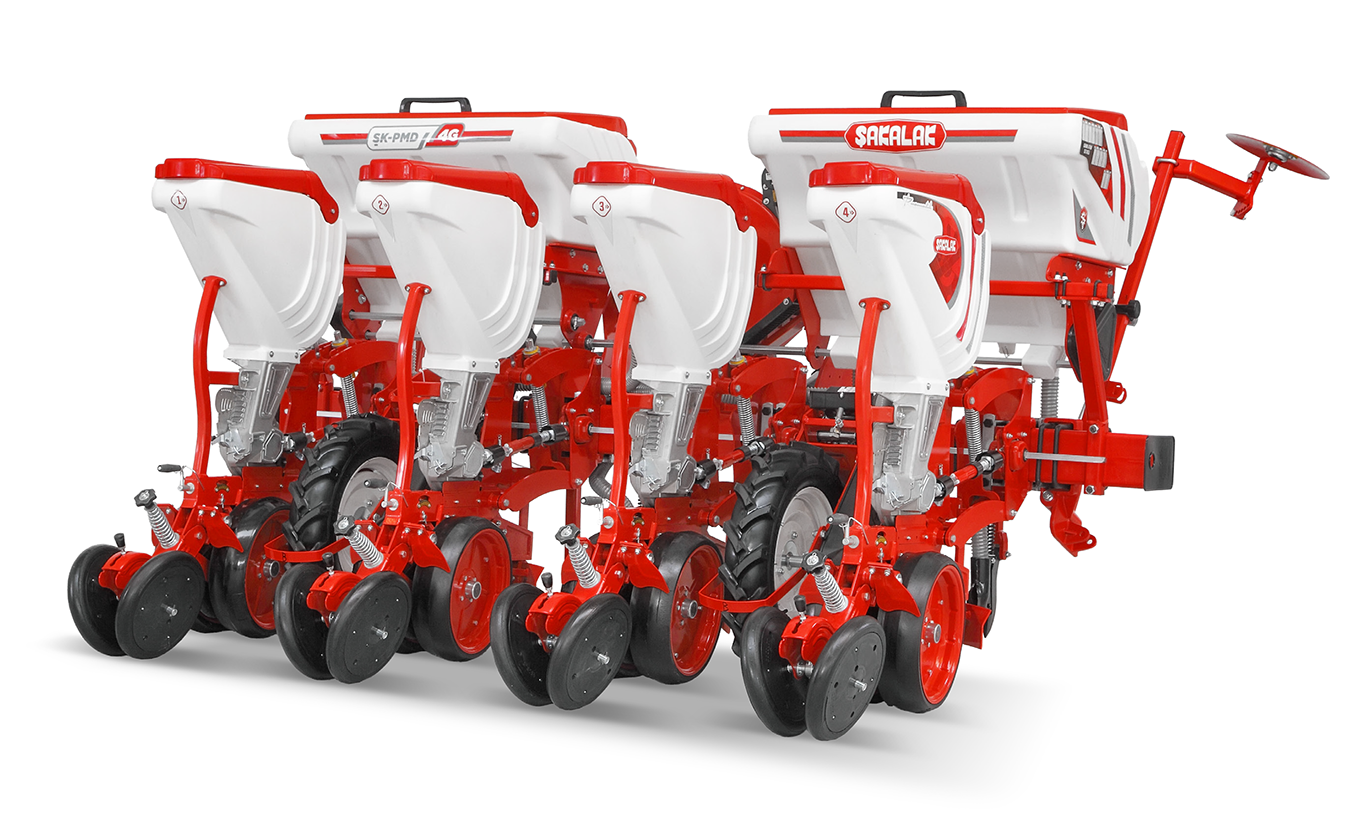

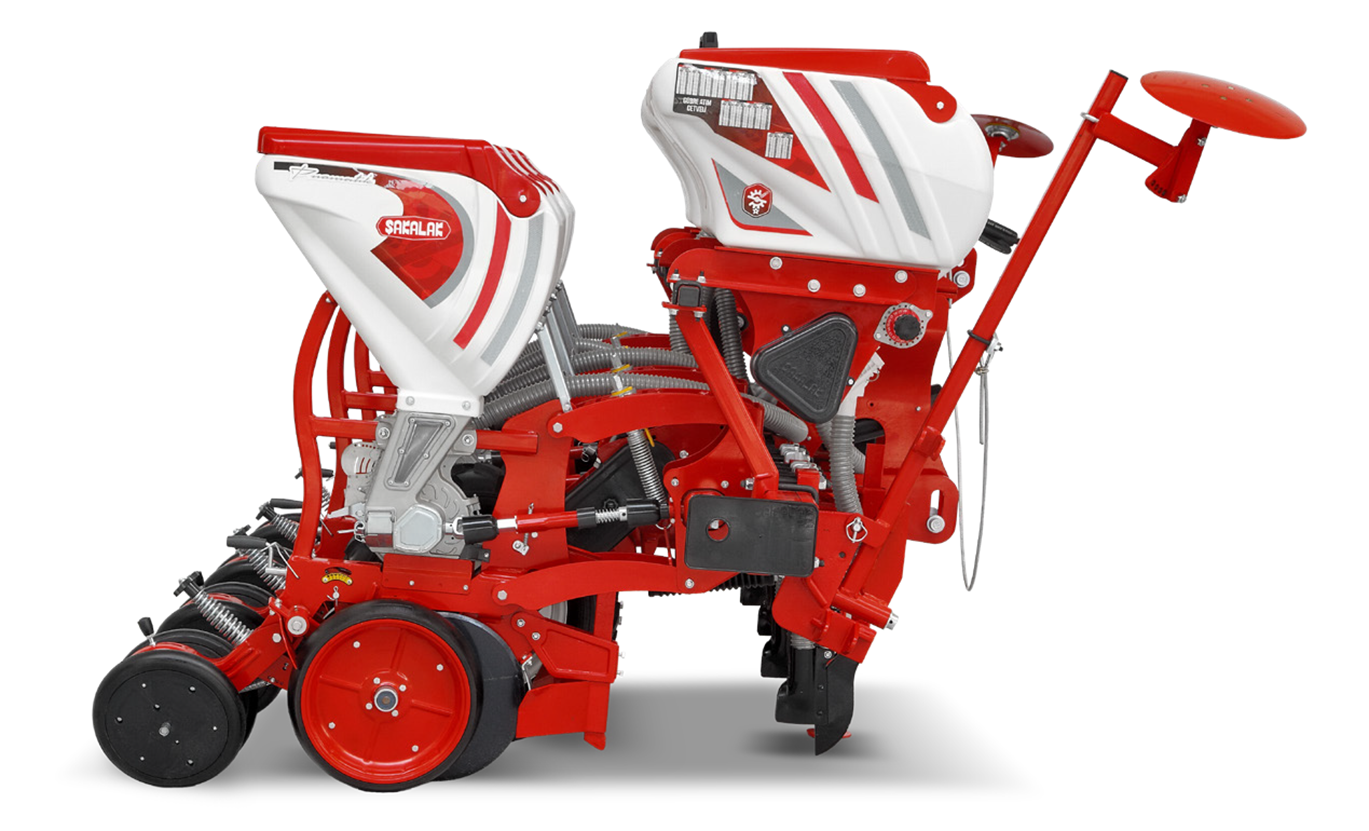

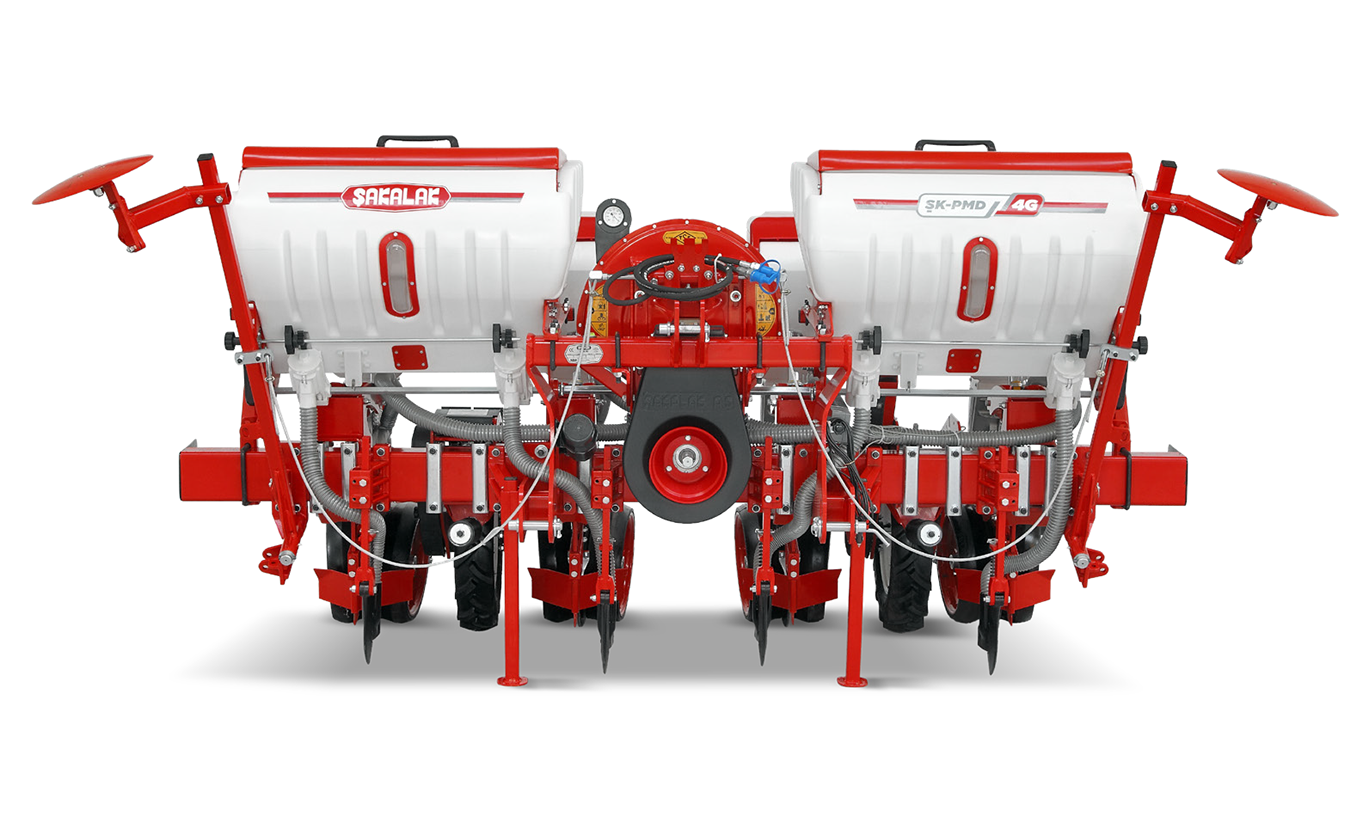

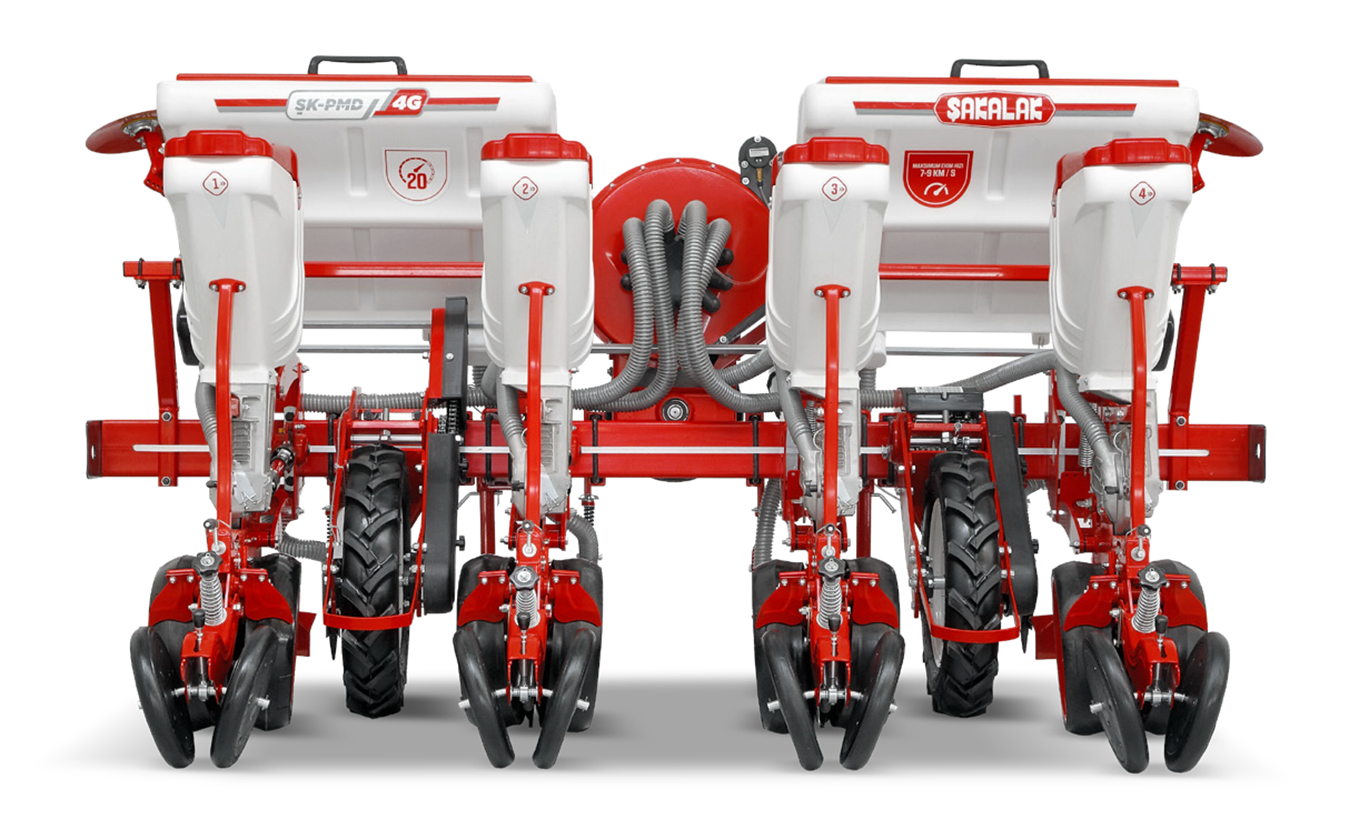

SK-PMD Series
Pneumatic Precision Planter (Disc Type)
Standart Features
The sowing disc are available for all kind of seeds and seed spacing on the row. Discs are easy to change.
Guide disc
Buble leveller and Electronic hectar-Meter for measuring sown land.
Seed in-line row distance adjustment transmission. Seed spacing is made easily by changing the positions of the gears in the gear box with the help of the indicator table.
It is possible to adjust the necessary fertilizer flowing with easyto clean and nonclogging fertilizer metering unit.
Vacuum meter; The pneumatic system pressure (vacuum) is followed by vacuum meter
Movements of draw markers is provided by the double-sided hydraulic lift.
Optional Features
Disc type fertilizer foot. It is optionally produced for more efficient fertilizing.
